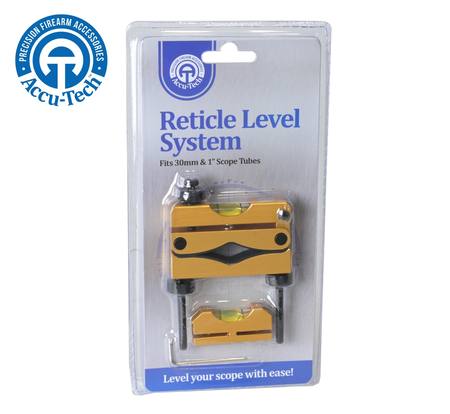

Accu-Tech Reticle Level kit

Reticle Level System by Accu-Tech

For the hunter and target shooter who demands the maximum shooting precision from their gear. The Accutech scope reticle leveling system is your most effective instrument available for precise scope alignment. It is designed to fit 30mm & 1" scope tubes.

Technological advances in today's modern firearms, ammunition and optics have enhanced the potential for long range accuracy. However, precision mounting and alignment of your system's scope is critical to realizing that potential. A scope's reticle must be precisely aligned with the barrel to ensure holdover or turret adjustments for bullet drop produce true vertical compensation for point of impact. If the crosshairs are canted left or right both elevation and windage bullet impact error can occur.

How does it work?

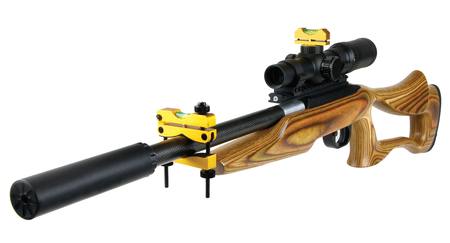

The Accutech reticle level system is a precision tool designed to allow a scope to be perfectly leveled on any firearm with ease. The system is comprised of two aluminum level housings calibrated to their integrated levels. The barrel clamp level is attached to the guns barrel while the smaller reference level is placed on scope base, bottom half of a ring or other flat surface perpendicular to the vertical axis of the gun. The gun is then rotated until the reference level is aligned. The tuning adjustment knob on the Barrel clamp level is then turned until its level is centered to match the reference level. At this point the barrel clamp level is calibrated to the guns axis. The scope can be installed loosely and the reference level placed on top of the scopes turret cap. The scope is rotated until the reference level is aligned with the barrel clamp level and then simply secured in place.

Gun City is NZ's largest firearms dealers. We have been selling, importing, exporting, manufacturing, customising and repairing firearms and accessories since 1978. We have the largest range of guns, ammo and scope accessories available now, online in New Zealand.

Please call our shop for more information on +64 3 379-8888 in Christchurch, New Zealand.

(275517)
