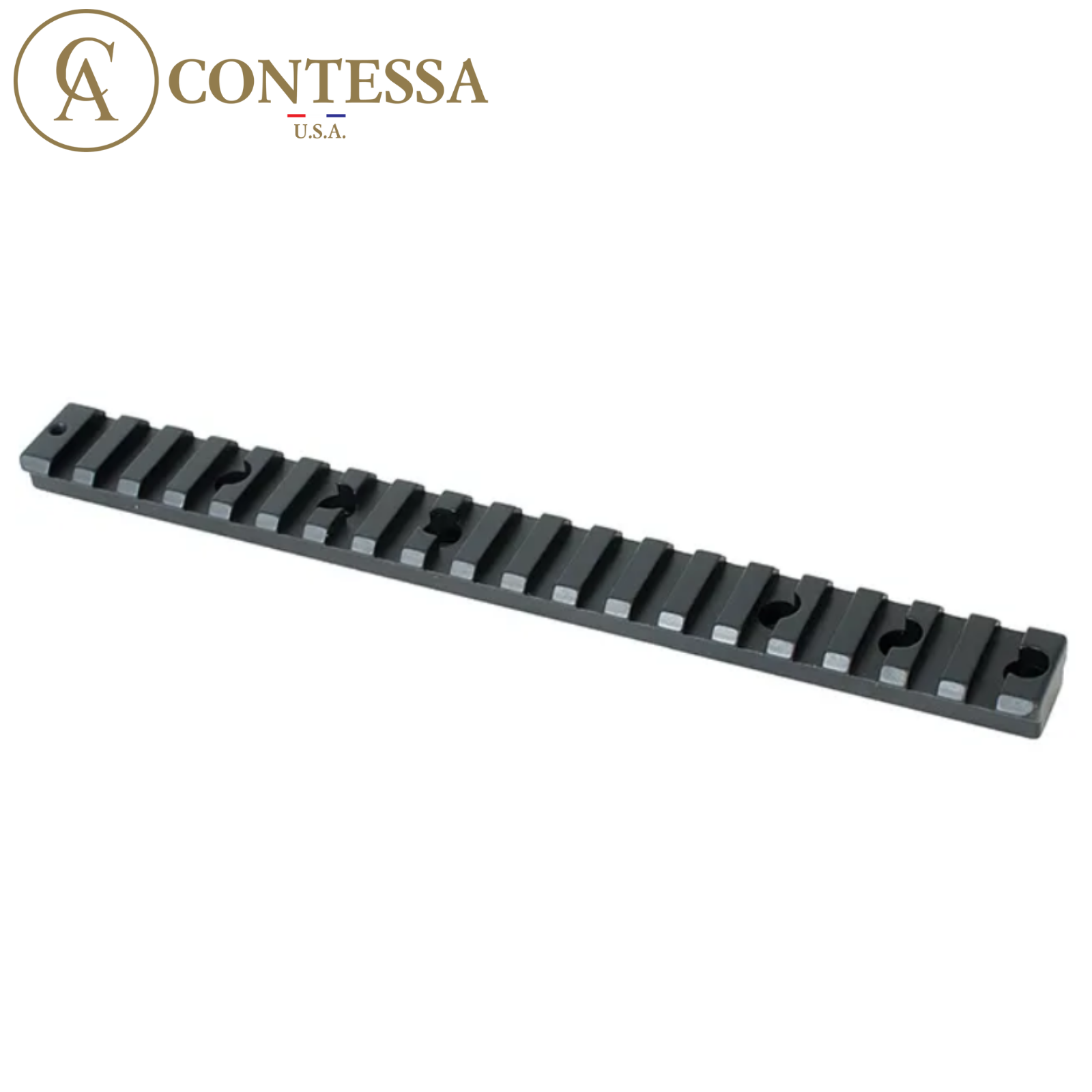

Contessa Sako TRG 42/22 0MOA Base

This mount is not meant to be attached to the rifle's dove-tail – it is mounted with 6 screws instead. There are two recoil stops on the mount. At the front, there is a mirage band.

Mounting instructions

Remove all the stains (grease, oil etc.) from the rifle's receiver with a cleaning fluid (acetone). Once the surface is clean and dry, check whether the screws match the rail and the holes on the receiver. Make sure that the Picatinny rail is compatible with the rifle by inspecting the mounting holes on both. Before mounting the rail permanently, apply a minimal amount of thread-locking fluid 278 or 648 on screws and contact surfaces. Be careful not to get the fluid in or near the mounting holes. Carefully clean the remaining excess fluid around the rail with a cleaning fluid. Using a torque driver, screw the screws appropriately (up to 2.2 Nm) – do not overtighten.

Specifications:

• Manufacturer: Contessa
• Mount series: Contessa Picatinny Rails
• Made in: Italy
• In production since: No
• Warranty: 30 years
• SKU: PH01
• Length: 200mm
• Material: Steel
• Color: Black
• BH height: 10 mm
• BH height: 10mm
• H height: 0
• Inclination : 0 MOA
• Base type: Picatinny
• Scope / Sight type: Picatinny Rail
• A : 22 mm; A1: 22 mm
• B : 65 mm
• C : 22 mm; C1: 22 mm
• Suitable for Mounts: Sako TRG 21/41, Sako TRG 22/42
