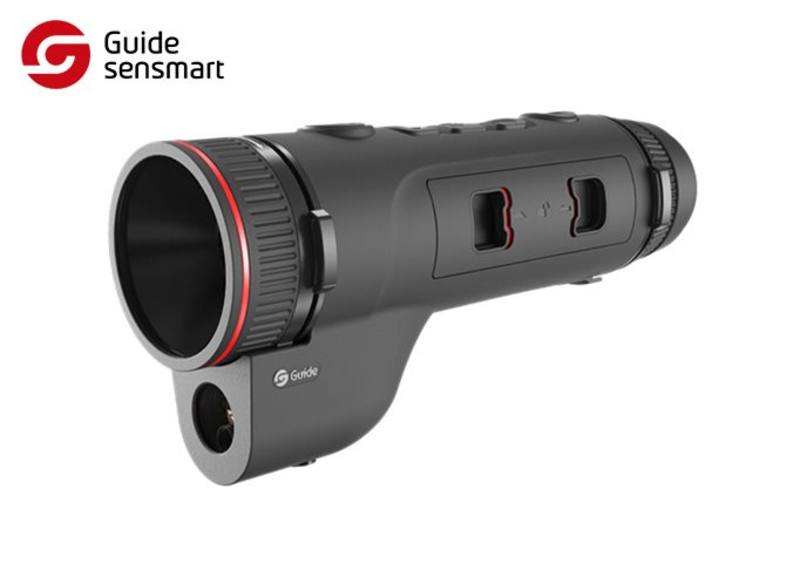

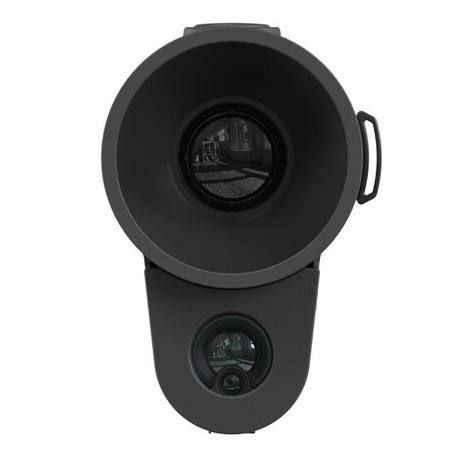

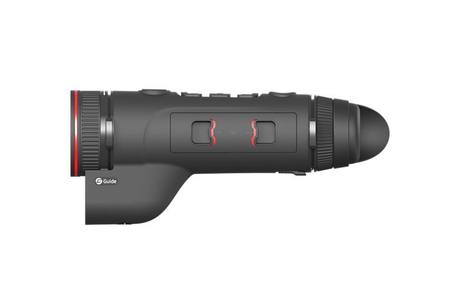

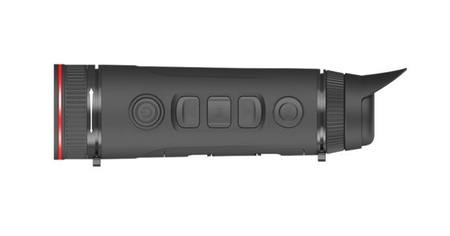

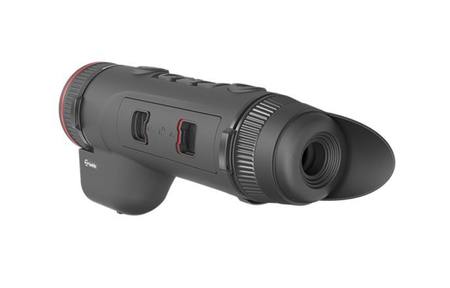

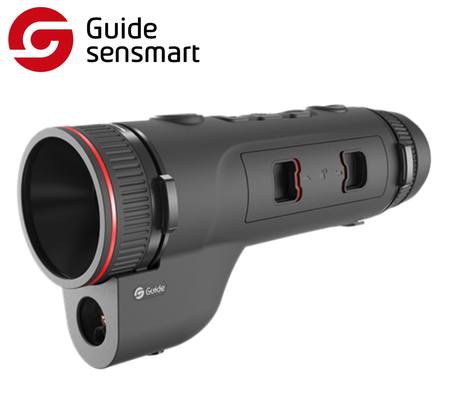

Guide TJ430L Handheld Thermal Imaging Monocular with Laser Range Finder (LRF)

Embark on nighttime explorations with the TJ LRF Series thermal handheld, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, laser ranging, video recording, and 12-hour battery life make it the perfect companion for nighttime escapades.

Welcome to the big screens. TJ LRF Series - Handheld Thermal Imaging Monocular

Features:

12um high-sensitivity infrared detector

By utilizing a highly sensitive IR detector with a NETD<25mK, even the slightest temperature differences, can be distinguished resulting in sharper and clearer imaging.

1920 X 1080 AMOLED Display

The eyepiece features a 1920x1080 high-definition AMOLED screen, allowing for a visual experience with vibrant colors and excellent image quality. This significantly enhances the comfort of observation.

35mm F1.0 focal length

Multiple focal lengths give TJLRF Series stronger capabilities and more options in different environments.

1000m laser ranging

The built-in laser rangefinder provides a long detection range of up to 1000m, improving the capability to obtain the target distance and the long-distance perception.

Thermal Monocular Specifications

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14 µm
• Resolution: 400×300@12µm
• NETD: 25mK
• Frame rate: 50Hz

Lens

• Objective lens: 35mm, F1.0
• Field of view: 7.9°×5.9°
• FOV m @100m: 14×10
• Magnification: 4.25x~17.0x
• Detection range: 1800m/ 1950yd

Display

• Display type: 0.39'' AMOLED 1920x1080
• Frame Rate: 50 HZ
• Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Exit pupil distance 16 mm; Diopter: -6 to +6; Zoom: 18x

Hardware

• Laser rangefinder: 1000m/ 1090yd
• WIFI: 2.4G & 5G
• Interface: USB Type-C (Power supply/USB2.0)
• Others: Microphone, Compass, Gyroscope, Bluetooth

System & Power

• Recording function: Photo/Video (Audio recording included)
• Memory capacity: 32GB
• Battery type: 2 replaceable 18650 batteries
• Operating time: 12 hours

Environmental & Physical

• Operating temp.: -20 °C to 50 °C/ -4°F to +122°F
• Encapsulation: IP67
• Weight(g/oz): 583g / 20.56 oz
• Size(milimetres): 243 × 97 × 66 mm
• Size(Inches): 9.57 × 3.82 × 2.60"

Guide TJ430L comes with...

• Guide TJ430L thermal handheld monocular
• Wrist strap
• Battery charger
• 2x 18650 battery
• 5V 2A adapter
• USB Type-C cable
• Quick use guide
• Warranty card

Product Manual: Guide TJ Series User Manual
