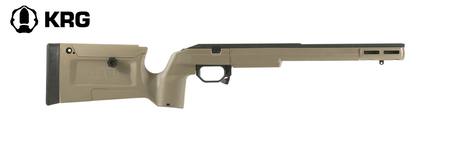

KRG Bravo Chassis for Tikka T3/T3x/CTR Short Action

The KRG Bravo provides you with the essential chassis benefits combined with conventional target/varmint ergonomics all at a modest price. The Bravo is one of the most comfortable stocks available but that's just the beginning.

The precisely machined bedding area will put your action in its happy place nearly like it was custom bedded in there. The full length stiff aluminum backbone will not allow the forend to flex on you but does allow design modularity with loads of accessories and even other KRG chassis.

The ergonomic adjustments are just what you need to fit your frame so you can pull off the difficult shots. Of course it takes AICS mags right out of the box.

It's light. It's comfortable. It's modular. It's good looking. You will love it.

*The Tikka inlet accepts T3, T3x, and CTR versions, however slight mods may be required on the trigger-guard for the T3 TAC A1 to function properly. Tikka rifles accept AICS pattern mags with the exception of the Magpul AICS polymer mags. Will fit short action calibers such as the below:

223 Remington

22-250 Remington

243 Winchester

260 Remington

6.5mm Creedmoor

270 Winchester Short Magnum (WSM)

7mm-08

30-30 Winchester

300 WSM

308 Winchester

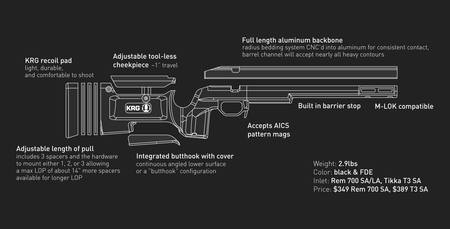

Features

Bravo Chassis Forend:

• Polymer for light weight and to eliminate heat transfer to/from the shooter's hand

• Mounting holes at various positions will take L2 Picatinny rails, Tripod Mount, Barrier stop, etc

• Mlok slots in sides and bottom of forend for universal accessories mounting

• Access hole for action mounting screw, so you can remove the action without removing forend

“Backbone”:

• Full length aluminum backbone from the action to the tip of the forend

• Radius bedding system which is CNC'd into aluminum for consistent contact between action and chassis

• Hardened stainless steel recoil lug instead of aluminum ones found on stock T3’s (T3 version only)

• Accepts the Whiskey-3 gen 3+ Spigot Mount

• Designed for 5 AICS magazines (with or without front spacer plate in T3)

• Barrel contours accepted: 1.25" for 4" in front of action face, then 1.20" straight to end of forend. A 1.25" straight cylinder barrel will fit but we feel that the clearance is too minimal. We recommend using no larger than a varmint contour to keep proper balance.

Trigger Guard/Mag catch:

• Molded light weight trigger guard

• T3 versions will accept KRG Midas 2-Stage trigger, Barnard trigger for T3 as well as factory trigger

• Mag catch extender button included (polymer version), and you can upgrade to an aluminum one available in our "Accessories" section

Cheekpiece:

• Infinitely adjustable within range (~1” travel)

• Can be quickly removed and re-installed, uses a clamp and thumbscrew design

• Made of polymer to limit heat transfer to or away from your face

Length of Pull (LOP):

• Adjustable with spacers in 3/8" increments with nearly 2 1/4” of adjustment range

• LOP range varies slightly between versions but is roughly 12.8” to 15” (technically even longer is possible with even more spacers)

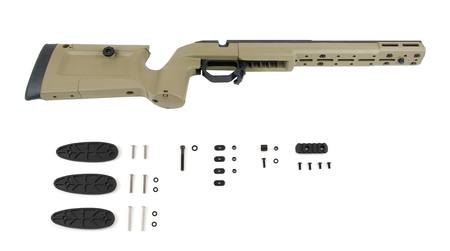

• Bravo's include our 1-3 LOP kit which includes 3 spacers and the hardware to mount either 1, 2, or 3 allowing a max LOP of about 14"

Buttstock:

• Very strong reinforced polymer material

• Mounting points for external QD cup

• Built in thumbshelf for same-side-thumb-grip shooters

• Can be configured with a continuous angled lower surface or a "butthook" configuration

• Modularity with X-ray and Whiskey-3 back ends, either of those will fit on Bravo and vice versa

Recoil Pad:

• Premium KRG designed pad that is light, durable, and comfortable to shoot

Mounting features for slings, monopods, etc:

• Forend has M-LOK slots on each side and bottom along with other holes for mounting KRG accessories

• Buttstock has one position on each side for external QD cup (1 ea included)

• Buttstock includes angled cover with the "Butthook" cover sold separately

• Harris bipod stud included on forend

• Spigot Mount can be added to front of chassis

• Ambi QD sling plate can be mounted and provides 3 positions for QD sling or HK hook sling attachments

Specifications:

• Aluminum parts are hard anodized (Type III)

• Nearly all fasteners are stainless steel, some with black oxide coating, some are without

• Steel parts are salt bath nitrided or stainless steel

• Forend and buttstock are injection molded reinforced polymer

• Weight: 2.9 lbs / 1.32 kg

• Colours: Black, Stealth Grey, FDE (tan)
