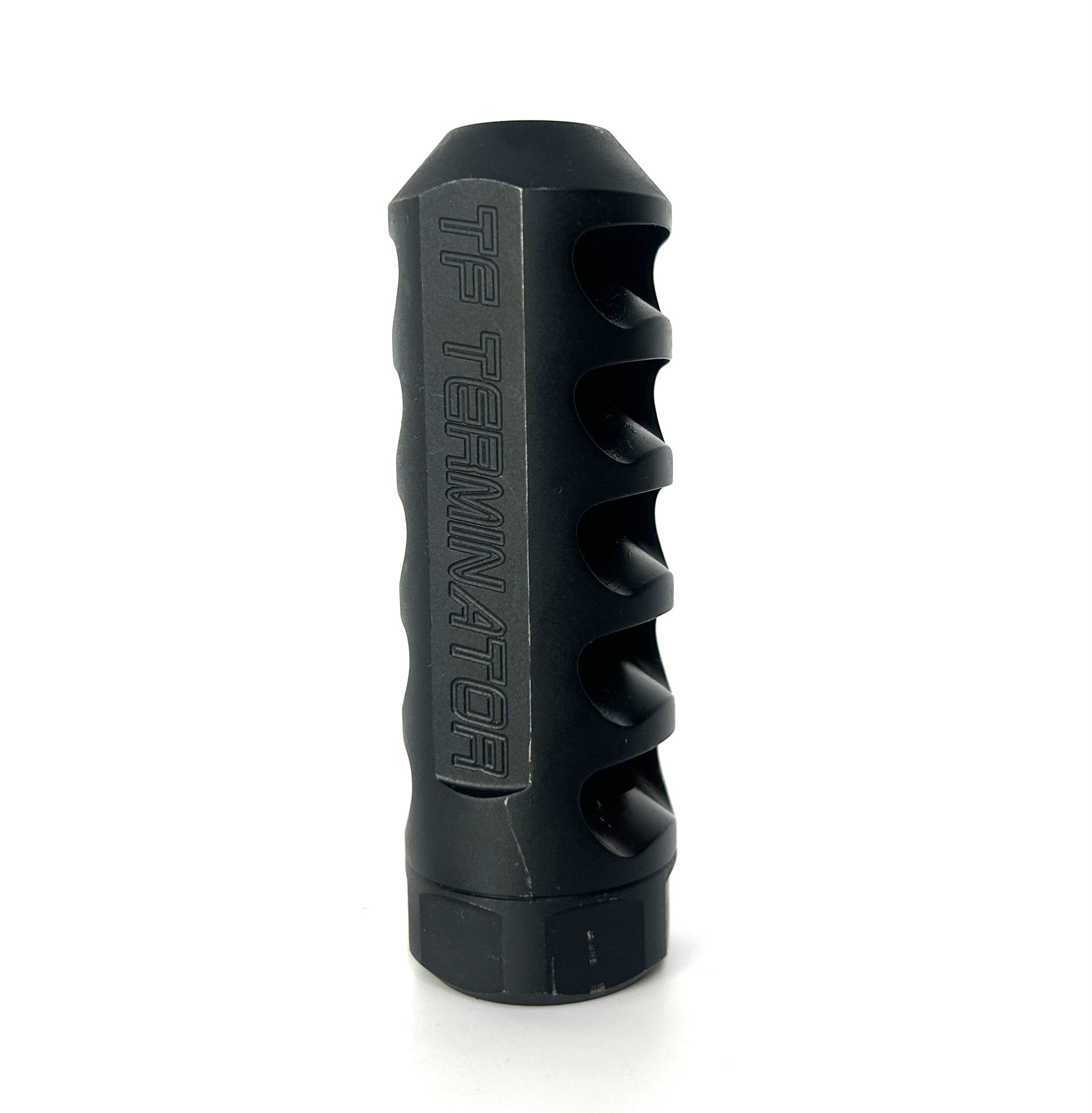

Second Hand TF Terminator Muzzle Brake 3/4x24

TF Terminator Muzzle Brake 3/4x24 - Second Hand

Second hand item pictured: The TF Terminator Muzzle Brake 3/4x24 pictured may not be the exact item available as we may have had more than one in stock under this product code. If you would like more pictures and/or information of what is available, please contact the stocking store.

The TF Terminator muzzle brake is KG Gunkoted Black & opened out as standard to take a maximum calibre of the .338 Lapua Magnum.

The TF has the same body as the TA & TE except it has a 3/4 x 24 thread.

It is specifically manufactured to replace the factory 338 Lapua Magnum Ruger Precision Rifle muzzle brake.

Easy DIY fit, no Gunsmithing required, using the locking nut to index it to the barrel.

TF with nut is 28mm, 1.1” diameter, 87mm, 3.4” long, 165 grams, 5.82oz, ¾ x 24 thread.

The nut will fit over a muzzle with a maximum diameter of 22.45mm, .883” at the thread shoulder.

Ports are 90 degrees to the ground to reduce disturbance & are angled back away from the shooter to minimise shooter discomfort and maximise performance.

The standard through hole is for .338 & requires opening up to 0.025-0.030? over bore size if fitted to larger calibres.

A handy tip is to carefully cut up an alloy drink can then put a strip of alloy between the spanner & the brake flats to help protect its finish, lube muzzle threads before installation

If you would like to use some Loctite or similar please put it on the brake only, not the nut.

The TF performance falls between the T3 & T4 Terminator Muzzle Brakes.
