Thermtec Vidar 660L-LRF Dual Zoom: 20-60mm 640x512 50hz Thermal Scope Laser Rangefinder

was SAVE
453247

In stock?

Christchurch
LOW
Auckland
Request
Wellington
Request
Hamilton
Request
Dunedin
Request
Napier
Request
Sockburn
Request
Motueka
Request
North Shore
Request
Richmond
Request
Invercargill
Request
Supplier
Request

Seen it cheaper elsewhere?

Request a Price Match - Click here.

Share this with your friends!

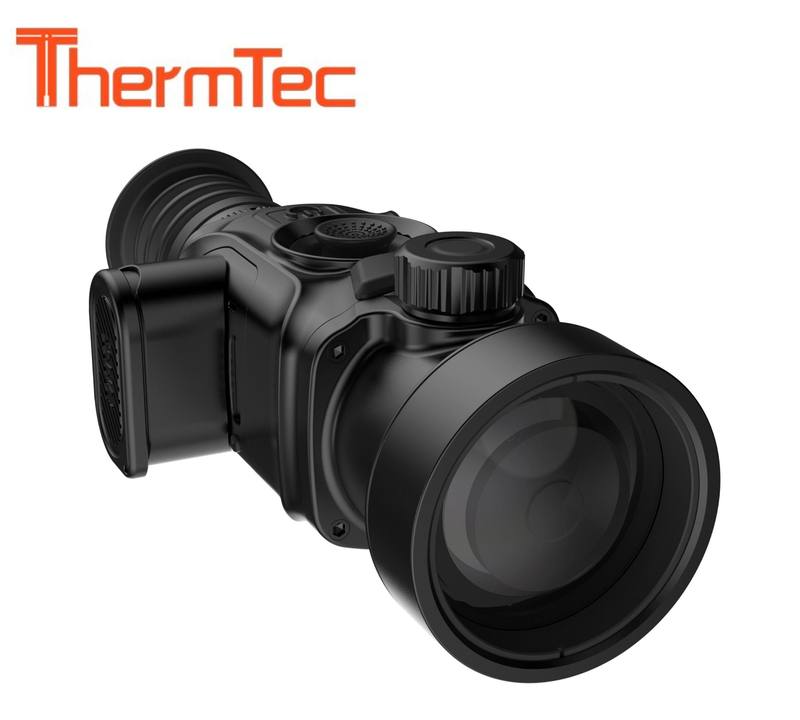

Thermal Vidar 660L-LRF Thermal Scope

Combining compact size & weight, the Thermtec Vidar thermal scope series represents the latest in thermal scopes technology. The Vidar series is designed for professional users without compromising on quality.

The Vidar 660L thermal scope not only features an LRF that can measure up to 1200m, but it also has a dual field of view. This allows the user to switch from a wide FOV to detect animals to then switch to a narrow field for a more defined image of the animal.

All models are equipped with Wi-Fi, as well as a photo and video recording capability that supports memory cards with a capacity of up to 64 GB. Thanks to advanced image calibration algorithms (NUC), these thermal imagers have been adapted to silent operation without the use of the shutter to ensure the image is continuously displayed during shooting. They have 6 colour palettes, 7 different reticles and 5 autonomous zeroing profiles for different calibres or shooting ranges, as well as many additional functions, including the Picture in Picture mode, quick reticle zeroing or the ability to be connected to smartphones

The devices are powered by replaceable lithium-ion batteries (2x 18350 or 2x 18500), which enable up to 10 hours of use. The Vidar series products meet demanding water resistance standards and are IP67 certified.

Thermal Scope Advantages

  • High Thermal Sensitivity
  • The Vidar’s NETD =25mK sensor captures the smallest detail even when the target and background are almost at the same temperature.
  • Automatic Object Detection
  • The Vidar 660L can constantly detect and identify any targets while entering its field of view.
  • High-Precision Zoom
  • Smooth & rapid 1.0-5.0X HD zooming ensures excellent sharpness and a high resolution of details from minimum to maximum magnification.
  • Two Way Wi-Fi Connection
  • Supports both Wi-Fi and hotspot connections; Real-time image transmission
  • 64GB In-built storage
  • A 64GB of memory card for storing photos and videos locally.
  • Easy Battery Installation
  • The battery's anode and cathode can be installed interchangeably, enabling quick battery replacement at night.
  • IP67 Protection Rate
  • Provided with IP67-rated protection, it is protected from heavy rainfall, snow, smoke, smog, or dust.

Thermal Scope Key Features

  • Compact design, video recording and snapshot, built-in memory chip up to 64GB
  • Uncooled, 640 x 512 Sensor , NETD=25mk
  • Automatic object detection and laser ranging distance up to 1,200m
  • Accurate ballistic calculation
  • Picture-in-picture & RAV function
  • 1x--5x continuous digital zoom, 2 modes of Rapid and Smooth
  • Various pesudo colours and Reticles
  • Polarity reversal for crosshairs, easy battery installation
  • 1024 x 768 resolution with 0.39 inch OLED display
  • Up to 14h of battery life with lithium 18650 batteries
  • Support easy shift of dual-field of view : focal length of 20/60mm

Thermal Scope Specifications

  • Sensor Type: Uncooled
  • Resolution, pixel: 640 x 512/12
  • Pixel pitch 12µm
  • NETD: <25mk
  • Spectral range: 8-14µm
  • Frame rate: 50HZ

Optics / Lens

  • Objective lens. 20 / 60mm, F/1.0
  • Field of view: 21.7°x17.4°/ 7.3°x5.9°
  • Magnification: 1.1x / 3.2x
  • Digital zoom: 1~5x continuous zoom
  • Eye relief: 45mm
  • Exit pupil: 6mm
  • Diopter -5 ~ +5D

Reticle

  • Click range, m @100 m (HV) 3,6m/3,6m
  • No. of Reticles: 7
  • Reticle colours: Black and white

Display

  • Display type: AMOLED
  • Resolution, pixel: 1024 x 768
  • Display size: 0.39"

Functions

  • No. of Colour palette: 6
  • Max. recoil power: 6000 J
  • Mounting: Picatinny Rail
  • Shooting Record: Support
  • RAV: Yes
  • Auto zeroing: Yes
  • Manual zeroing: Yes
  • No. of Zeroing profiles: 5
  • Picture-in-picture: Yes

Laser Range Finder

  • Laser rangefinder Distance: 1200m

Interface & Video/Photo

  • Image calibration: VIA lens cover
  • Photo/video playback: Yes
  • In-built memory: 64GB
  • Magnetic interface: Data transfer
  • Wi-Fi: Yes

Battery

  • Replaceable battery: 2x 18650
  • Battery reverse connection: Yes
  • Battery life/Runtime: 14h

Environment :

  • Operating temperature: -20°C - +50°C
  • IP rating: IP67
  • Weight: 750 g
  • Size: 203 x 100 x 87 mm
  • Magnetic Cable: Magnetic interface data cable
  • Other Accessories: Standard Picatinny Rail, eyeshade and etc.
