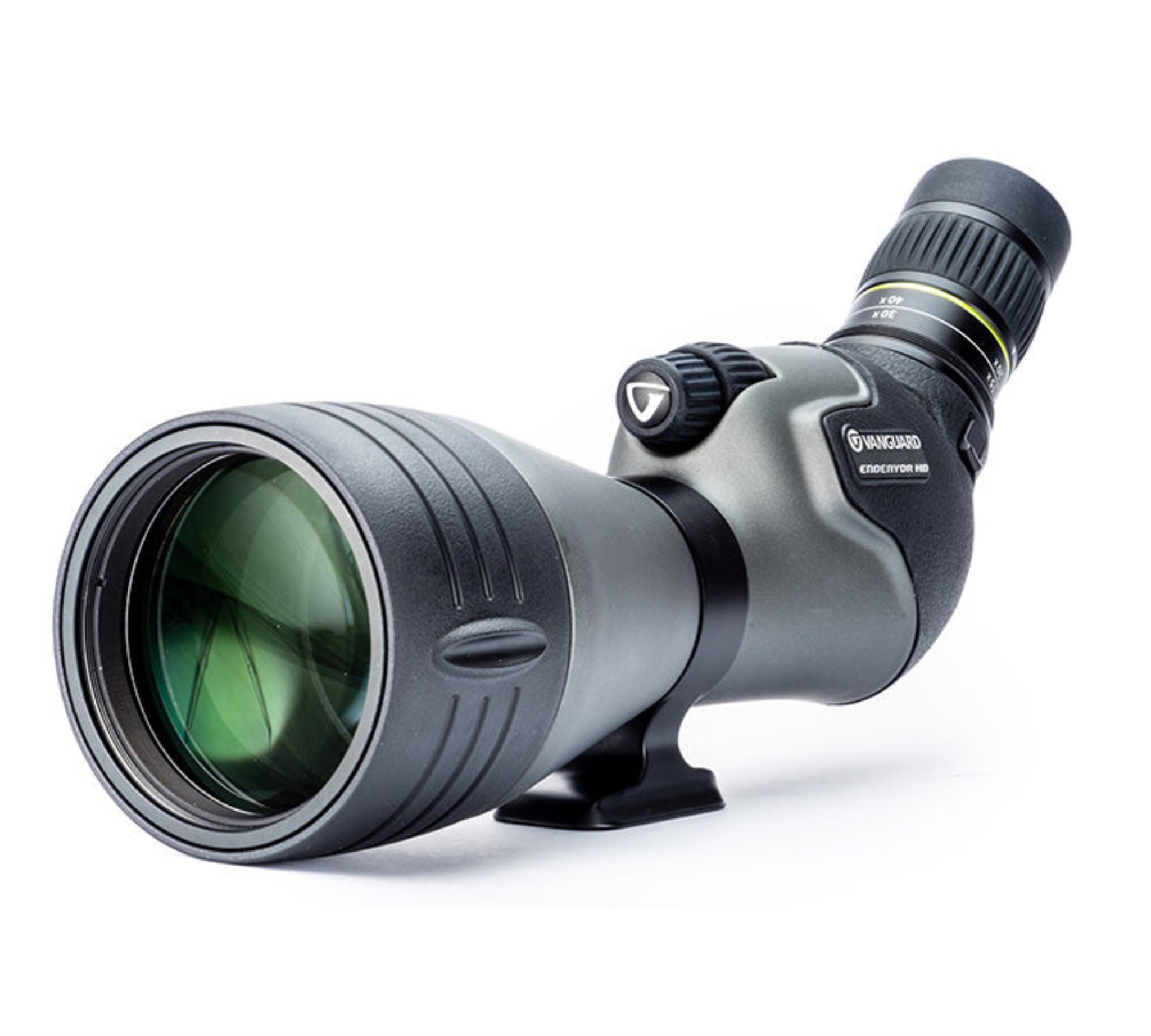

Vanguard Endeavour 82A HD 20-60-82 Spotting Scope

Vanguard Endeavour 82A HD 20-60-82 Spotting Scope

The angled view Endeavor HD 20-60x82 Spotting Scope combines a nitrogen-filled magnesium housing and a fully multicoated optical path to create a well-equipped zoom optic for intermediate to long-range observation. Endeavor HD series features an extra-low dispersion (ED) lens system and phase-corrected BaK4 prisms, which maximize light transmission and produce colour faithful images that are rich with contrast.

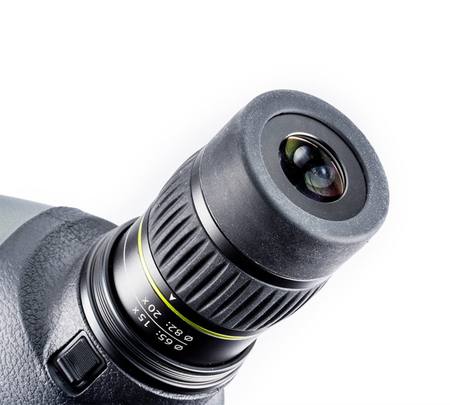

This version of the Endeavor HD spotting scope includes a 20-60x zoom eyepiece featuring a rubber zoom dial. A 1:3 zoom ratio and 2.1-1.0° angle of view complement the eyepiece's long 19mm eye relief and rubber eyecup, which help to provide additional viewing comfort for long-duration observations.

In addition to the image quality and weather-sealed construction, the Endeavor HD includes several features that enhance the scope's functionality. A stacked dual-focus mechanism enables the observer to make fine and coarse focus adjustments. The tripod mounting foot has a standard 1/4" socket and is compatible with Vanguard tripods that accept the universal mounting shoe.

Optical Performance

• 20-60x magnification, 82mm objective
• Extra-low dispersion glass elements, BaK4 prisms
• Fully multicoated optics
• 2.1-1.0° angle of view
• 19.7 ft close focus distance (at 20x)

Use and Handling

• Angled view eyepiece is inclined 45° from the objective lens
• Separate coarse / fine focus controls
• Interchangeable eyepiece mount
• Tripod mounting foot

Construction Details

• Nitrogen-filled fogproof / waterproof housing
• Magnesium body with textured rubber Armor

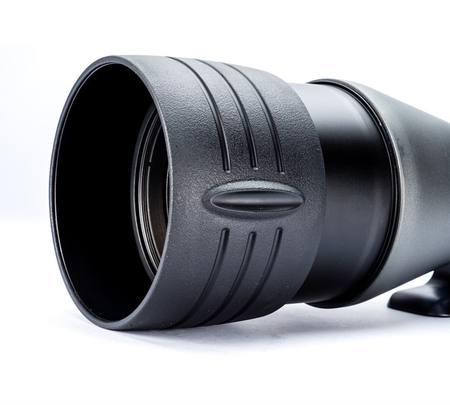

• Built-in sunshield

Specifications

• Body Material: Magnesium alloy
• Colour: Black
• Diameter of objectives: 82mm
• Dimensions (L x W): 380 x 180 mm
• Eye Cup: Twist out
• Eye Relief
• Features: 1177,1163,1176,1162
• Field of View @1000m: 37~ 17
• Field of View @1000 YD: 110 ~ 52
• Focus System: Center focus
• Illuminated Reticle: No
• Lens coating: Fully multi coated
• Maximum Power : 60x
• Minimum Power: 20x
• Ocular Adjustment: ± 0
• Phase coating: Yes
• Power: 20x ~ 60x
• Prism Type: BaK4 prism
• Relative Brightness: 16.8~1.8
• Series: Endeavor HD
• Twilight Factor: 40.4~70.1
• Type: Angled
• View Angle: 2.1 ~ 1.0
• Waterproof: Yes
• Weight (grams): 1808g
