.22 FX DRS MDT Pro Chassi 700mm Barrel Air Rifle: 960fps

.22 FX DRS MDT Pro Chassi 700mm Barrel Air Rifle: 960fps

The FX DRS Pro MDT 700 is a powerful PCP air rifle with a contemporary styling. What immediately catches the eye, is the seeming absence of an air reservoir, giving the FX DRS Pro MDT 700 a nice and low profile. The Swedes have done this by placing the air reservoir as a shroud around the barrel. A very neat solution that gives the FX a very minimalistic look with clean lines.

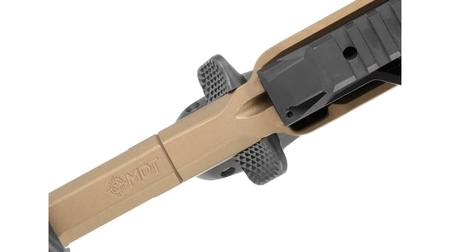

MDT chassis

With the FX DRS Pro MDT 700, FX has fully committed itself to PRS (Precision Rifle Shooting) long distance competition shooting with slugs. It’s not only notable in the slug-optimised setup using a large plenum and upgraded internals, but also in the use of the well-regarded MDT ACC Elite chassis that MDT has redesigned specifically for FX to use on the DRS Pro. There has been a good focus on balance, as the barricade block has shifted backwards more than usual. With that, the FX DRS Pro MDT 700 has gotten a very impressive a basic balance.

The light and very stiff aluminium chassis features an MDT Premiere GEN2 buttstock. It’s also machined from light aluminium and has a length adjustment, as well as a hight-adjustable cheekpiece. With that, the FX DRS Pro MDT 700 has all the necessities that are needed for a perfect shooting stance.

Air tube barrel shroud

We’ve already mentioned it; the FX DRS Pro MDT 700 is FX’s first PCP with the air reservoir mounted around the barrel. No cylinder or bottle under the barrel, which offers the advantage of the profile being lowered significantly. This will aid you in your shooting stance, but also means that transporting and storing the FX DRS Pro MDT 700 will take less space. The air capacity is 307 cc.

Adjustable regulator

To have the FX DRS firing every shot with the same pressure, this PCP uses a MkII AMP regulator. This regulator is externally adjustable, making it a breeze to adjust the pressure to match the chosen pellet or slug. Doing this ensures the highest possible accuracy and guarantees an ultimate shot consistence.

Adjustable hammer spring

After taking off the stock, the hammer spring preload can be adjusted. With more preload on the hammer, the valve will stay open longer, letting through more air. And with less preload, the valve will closer quicker, letting through less air. You can experiment with this and try to keep air pushing behind the pellet or slug for as long as possible, without and excess of air disturbing the balance when the projectile exits the barrel.

Super High Power plenum and Slug Power kit

FX is well-known for spending a lot of time perfecting their plenums. This is the air chamber (pre-chamber) between the regulator and the valve. It’s the exact amount of regulated compressed air that is used to propel one projectile. For large projectiles, longer barrels and higher speeds, more air will be needed to let the pellet or slug leave the barrel with the desired speed. That’s why the FX DRS Pro MDT 700 features a 63 cc SHP plenum. And to match, a Slug Power kit is installed, consisting of a slug probe and a heavier hammer weight.

Superior STX barrel system

The Superior STX barrel system features a removable liner with rifling that’s pressed in from the outside. This makes for a very smooth inner surface and very fluent rifling. All this is done to minimise friction and maximise sealing around the slug. The barrel features a ½ UNF thread with thread protector for mounting an optional moderator.

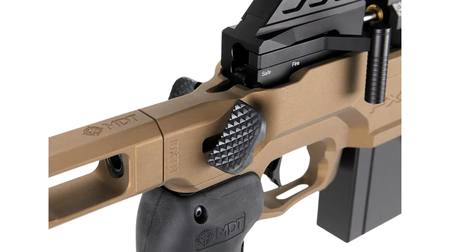

Adjustable match grade trigger

To get the very best out of the FX DRS Pro MDT 700, its match grade trigger is fully adjustable. With this, you can adjust the trigger exactly as you like it, making its feel match your shooting style. Both the first and second stage are adjustable and the trigger blade is adjustable in distance and hight, but can also be rotated for perfect ergonomics. The trigger has a very crisp break and the trigger weight can be adjusted to be extremely light.

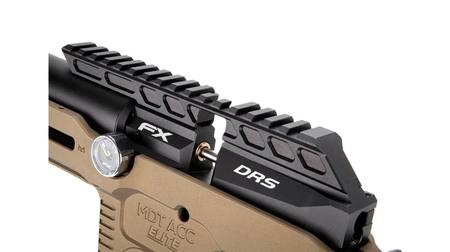

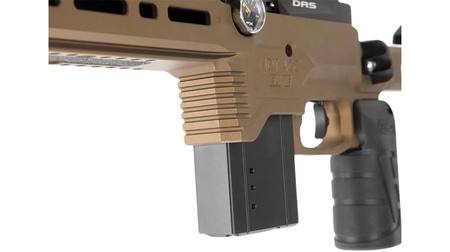

Magazine options, rails and weights

The FX DRS standard comes with a mini magazine. Thanks to this small magazine it’s possible to mount the rifle scope very close to the barrel. As standard, a low 30 MOA Weaver/Picatinny rail is mounted, but a higher one is available if you want to use the optional mega magazine with more capacity. We’ve also got weights to fit into the M-LOK slots in the chassis to finetune the balance to your preferences

Cocking and filling

With the magazine in place, cocking the FX DRS Pro MDT 700 is done easily by pulling the very subtle cycling side lever on the right side towards you. And to quickly refill the air reservoir, there’s a filling hole on the right side, into which you can put a fill probe. Easy!

Specifications for .22 FX DRS MDT Pro Chassi 700mm Barrel Air Rifle:

• Caliber: .22
• Capacity: 60 shots with 22gr slug at 960 fps
• Air Capacity: 307 cc
• Fill Pressure: Max 230 bar (3335 psi)
• Optics: PRO: Picatinny Rail, Classic: 11mm dovetail.
• Trigger: Adjustable
• Stock: MDT ACC Elite Chassis with Premier Buttstock
• Weight: 3500g
• Length: 1120 mm
• Ammunition: Any .22 cal pellet
• Barrel Length: 700mm
• Cocking System: Right hand positioned sidelever

Basic tips for PCP operation.

• Make sure the barrels are cleaned prior to use the first time. Don’t use solvent. Mineral based cleaners like balistol should be used.
• Don’t use a brush or anything abrasive on the barrels just oil and cotton patches
• Use silicon oil and grease for oiling and lubricating
• Never let the tank drop below 1000PSI unless it its being emptied for a repair.
• If filling from a scuba tank purge the air very slowly
• If filling from a hand pump take breaks every 2 minutes to allow the air in the pump to cool failure can make the seals in the gun and the hand pump wear faster than needed
• Never exceed the max limit of the tank on the rifle if it is not written on the tank stay below 200BAR or 20MPA
• Most PCP air rifles will prefer heavier weighted pallets
