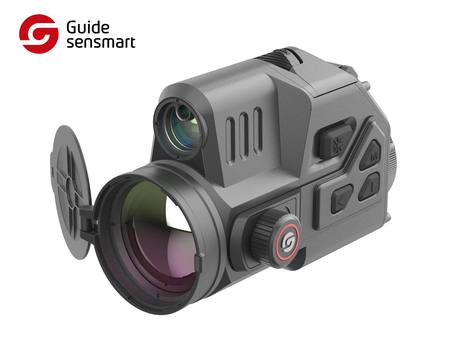

Guide TB1250 Pro Thermal Clip-On with Laser Rangefinder

Introducing the Guide Sensmart Compact Clip-On TB 1250 LRF Pro —the first thermal clip-on on the market with a HD 1280x1024 resolution. This groundbreaking technology brings exceptional thermal image quality to night hunters, making high-definition thermal imaging a reality.

Key Features

• 1280×1024 @12µm Sensor Resolution
• 2800 yd Detection Range
• 50mm; F1.0 Focal length
• 1920x1080 Full HD Display
• 1630Yd Laser Rangefinder

The TB Series of thermal clip-ons were specifically designed to be compact and lightweight, but they come with all the features that you can expect, which include: built-in recording and picture capture capabilities, laser rangefinder with ultra long distance of up to 1000m, full HD AMOLED display bringing a rich and detailed visual experience, Wi-Fi hotspot, intelligent functions such as image tracing and automatic recording after each shot, TargetIR app compatibility for storing and sharing images and videos, constant OTA upgrades, IP67 protection rating, 6 hours of battery life and more.

Features

Mega-Pixel infrared detector, NETD reaches 18mK

TB LRF Pro Series adapts the high-sensitive 12µm detector of 1280×1024 infrared resolution with NETD down to 18mK. The advanced detector can distinguish the slightest differences and changes in temperature.

Ultra-long laser ranging, 1000m built-in LRF

The built-in LRF module provides a long laser rangefinder of up to 1000m/1090yd, enabling users to detect and locate the targets quickly and precisely.

50mm lens for more image details

TB LRF Pro Series utilizes a longer focal length of 50mm to provide a longer observation distance and more image details than the common lens.

Stunning visual experience, Full-HD AMOLED display

TB LRF Pro Series has a 0.39'' AMOLED 1920x1080 display screen, presenting a vivid image with more details for users.

Target detection range up to 2600m

A maximum detection range of 2600m/2800yd, can detect targets in a long distance, which will help you see farther and observe more outdoors.

IP68 waterproof, durable quality

Compact and rugged, portable and powerful, the TB LRF Pro Series sports the high protective features of IP68, to support your outdoor adventures in the harsh environment.

Specifications

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14µm
• Resolution: 1280×1024@12µm
• NETD: 18mK
• Frame rate: 50Hz

Lens

• Objective: lens 50mm, F1.0
• Field of view: 17.5°×14.0°
• FOV m@100m: 31×25
• Magnification: 1x
• Detection range: 2600m/2800yd

Display

• Display type: 0.39'' AMOLED 1920×1080
• Colour palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece Eye relief: 20mm; Zoom: 13.3x

Hardware

• Laser rangefinder: 1500m/1630yd
• WIFI: 2.4G, 5G
• Interface: USB Type-C (Power supply/USB2.0)
• Others: Microphone, Bluetooth

System

• Recording function: Photo/Video (Audio recording included)
• Memory capacity: 256GB

Power

• Battery type: 2 replaceable 18650 batteries
• Operating time: 6 hours

Environmental

• Operating temp.: -20°C to 50°C
• Shock: 1000G at 1ms half sine pulse (as per IEC60068-2-27)
• Encapsulation: IP68

Physical

• Weight (g/oz): 617/21.76
• Size (cm/in): 161×89×97/6.34×3.50×3.82
• Standard: A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card
• Optional: 18650 battery, Bluetooth remote control, Cover ring adapter
