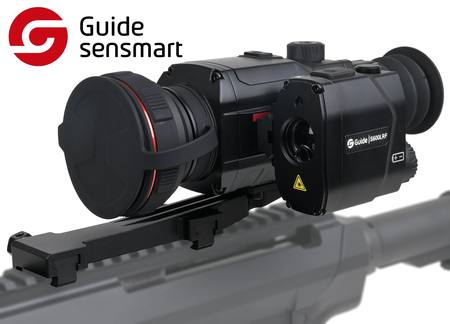

Guide TR650 50mm 640x480 Thermal Scope with External Laser Rangefinder

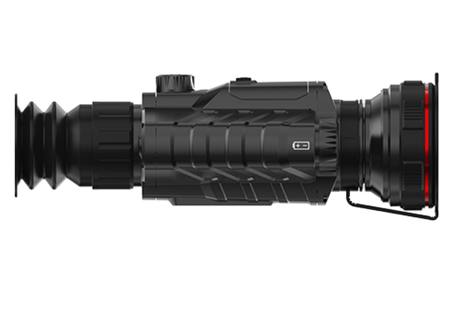

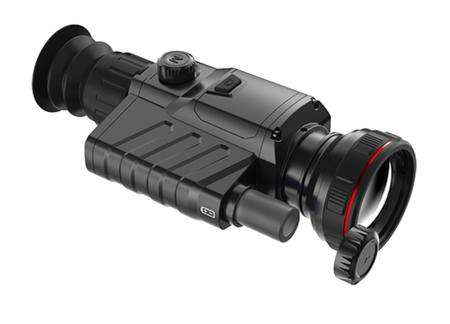

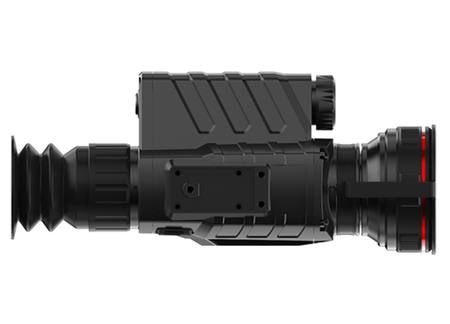

Guide TR650 Thermal Scope

The thermal scope TR Series is an economical civilian infrared thermal imaging scope that adopts high sensitivity thermal detector with three different lens options 25 mm, 35 mm, and 50 mm. The TR thermal scope Series offers sharp, detailed images with 640 × 480 IR resolution while retaining accuracy. TR thermal hunting scopes feature a compact size, waterproof and dustproof, high shock resistance, rugged and durable, which performs impressively in harsh weather.

Thermal Scope Key Features

• 640×480IR resolution
• 50mm F1.0 Focal length
• 8.73°×6.60°FOV
• 1024×768 OLED display
• External LRF (laser Rangefinder) that can measure up to 600m

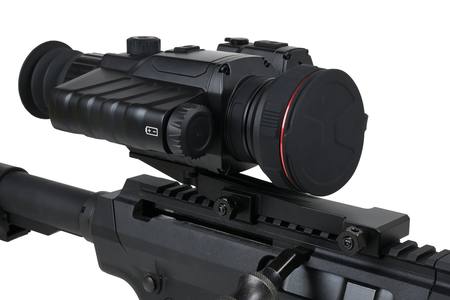

• Extended Picatinny Mount

Enduring performance, day and night.

Main Thermal Scope Features

• 8 hours super long battery life: Standard 18650 battery provides enough power for up to 8 hours of operation time, ensuring continuous observation without disruptions
• Photo and video recording: Photo and video functions to record wonderful moments at any time,, easy to share
• High definition detector: TR series uses high-quality 12um thermal imaging detectors with 640x480 resolution to offer an exceptionally sharp image and excellent thermal sensitivity in all weather conditions
• One-touch Freeze: Screen freeze for quick and easy zeroing improves accuracy and enhances user convenience, contributing to a better user experience.
• External Laser Range Finder (LRF): With an external laser range finder, the TR series can achieve 600 meters of accurate distance measurement for quick target searching, allowing for direct connection on boot without manual pairing.
• Six Colour Palettes: The 6 colour palettes improve viewing under various conditions. White Hot, Black Hot, and Red Hot are optimal for object detection. Green Hot, Iron Red, and Blue Hot help increase chances for recognition and identification.
• IP67 Protection Rating: With IP67 waterproof and dustproof rating, the TR Series works in high humidity and heavy rain conditions and protects from dust and impact, which features exceptionally high shock resistance up to 800G.
• ?OTA Upgrade: Support device firmware updates by connecting TargetIR for high efficiency.

Thermal Scope Specifications

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14 µm
• Resolution: 640×480, 12 µm
• NETD: =30mK
• Frame rate: 50 Hz

Lens

• Focal length: 50 mm, F1.0
• Field of view: 8.73°×6.60°
• Optical zoom: 2.8x
• Digital zoom: 1x ~ 8x
• Focus: Manual

Display

• Display type: 0.39’’ AMOLED
• Resolution: 1024×768
• Eyepiece: Exit pupil distance = 48 mm; Diopter ± 4; Zoom: 14x
• Video output : Analog video

Range Performance

• Detection range: 2000 m

Functions

• Scene modes: Enhanced, Highlight and Natural
• Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot
• Recording function: Photo/Video
• WIFI: 2.4G
• Supported Application: TargetIR
• Firmware OTA: Upgrade device firmware via app connection
• Others: PIP, Hot spot tracking, Rough ranging

Power

• Battery type: Single, replaceable 18650 battery
• Operating time: = 8 hours

Interface

• USB: USB Type-C
• Mechanical interface: Picatinny

System

• Language settings: English / Russian / German / French / Italian / Spanish / Japanese / Korean
• Memory capacity: 32GB

Environmental

• Operating temperature: -30°C to 50°C
• Storage temperature: -45°C to 70°C
• Humidity: 10 % to 95 % non-condensing
• Shock: 800 G at 1 ms half sine pulse (as per IEC60068-2-27)
• Drop: 1m
• Encapsulation: IP67
• Certification: IP67, FCC, CE, RoHS, EAC, WEEE, UKCA, un38.3

Physical

• Weight : =590 g
• Size: 219×88×66 mm

Included in box...

• Guide TR650
• External LRF
• Extended Picatinny Base
• Type C cable
• 5V 2A adapter
• 18650 battery
• Battery charger
• Lens cap
• Eye mask
• Quick start guide
• Warranty card
