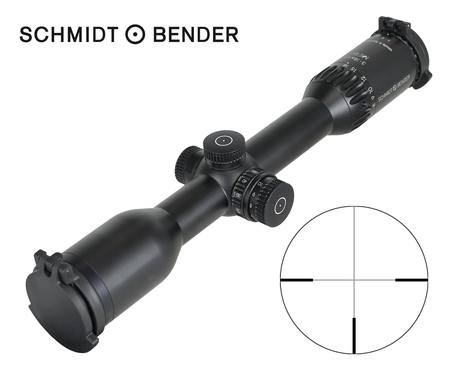

Schmidt & Bender Meta 3-18x42: 1cm Posicon CT, LP7 (SFP) Illuminated Reticle

Schmidt & Bender Meta 3-18x42: 1cm Posicon CT, LP7 (SFP) Illuminated Reticle

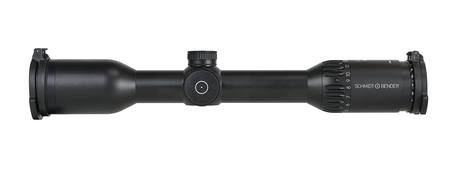

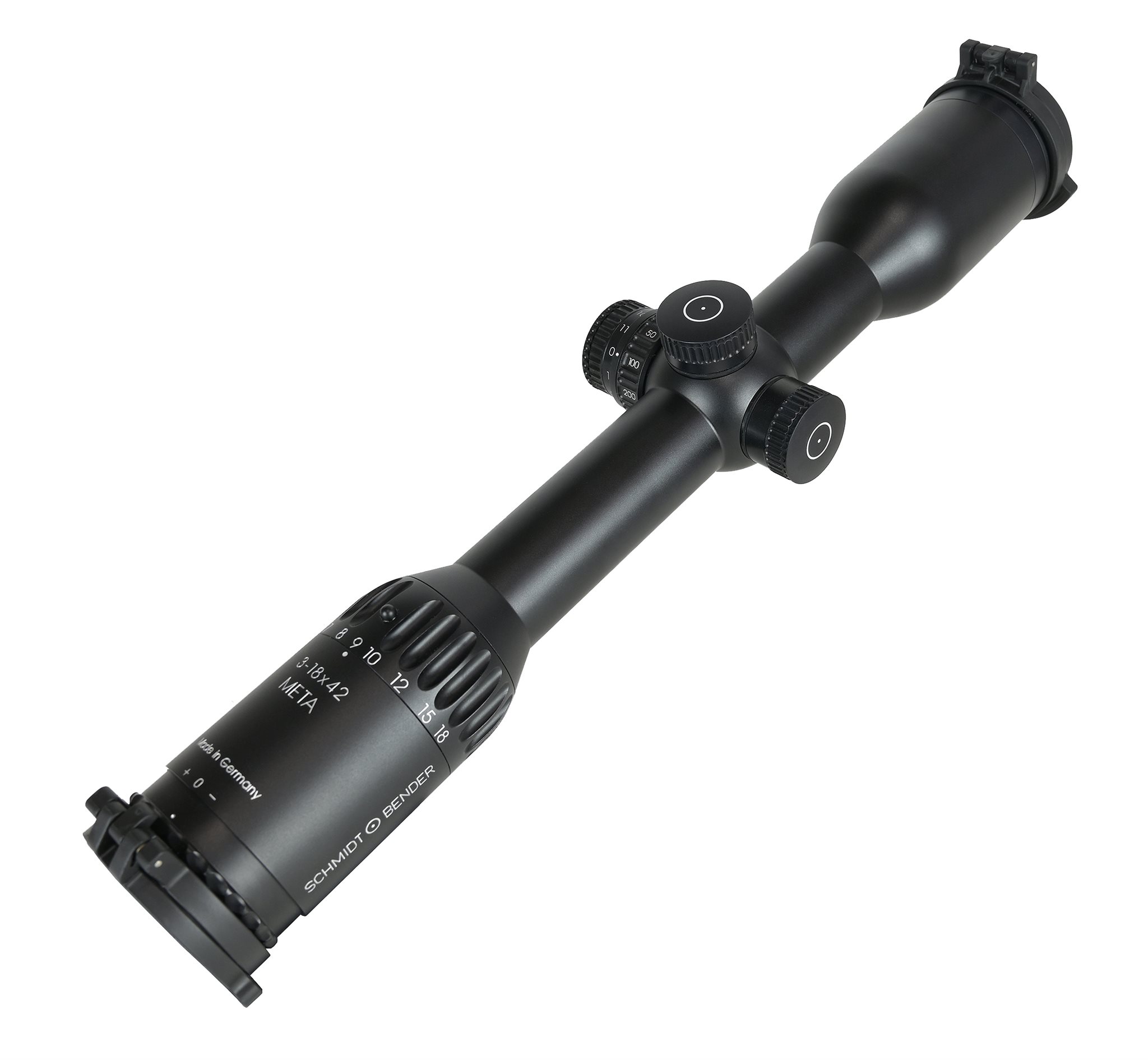

The 3-18x42 Meta is the newest development from Schmidt & Bender. This compact, powerful and versatile hunting riflescope combines all relevant features and makes it a true all-rounder. The slim and short aircraft grade aluminum 30 mm tube saves weight and yet is rugged for combining it with night vision devices. Due to the patented optical design it combines a superb image quality with a great field-of-view along with extremely high light transmission. The 3-18x42 Meta is made by hunters for hunters who seek a most advanced riflescope for utmost hunting success.

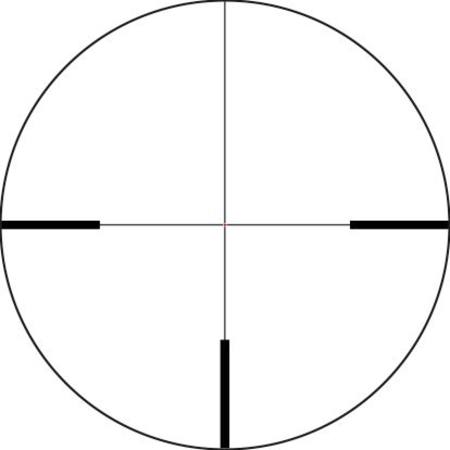

LP7 SFP (Second Focal Plane) reticle advantages

Although a SFP reticle, the design of the LP7 reticle enables range estimation:

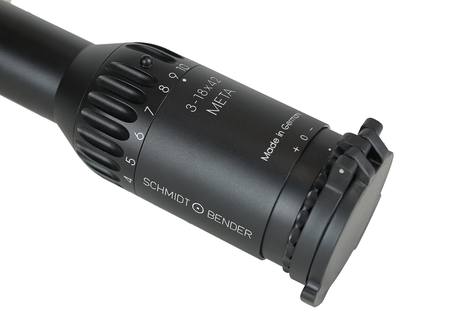

The “true magnification” of the 3-18x42 Meta is marked by a visual and tactile pin on the magnification ring at 9x power. You can estimate distances on 9x as well as on 18x zoom as follows.

At 9x zoom - A roe buck stands at about 100 m if he fits between reticle center and horizontal bar (≙ 70 cm). He stands at about 50 m if he fits between the horizontal bars (≙ 140 cm).

At 18x zoom - A roe buck stands at about 200 m if he fits between reticle center and horizontal bar (≙ 70 cm). He stands at about 100 m if he fits between the horizontal bars (≙  140 cm).

42 mm Objective

The lean and slim 42 mm objective makes the 3-18x42 Meta a very handy riflescope. The quick LP7 reticle with illuminated red dot in second focal plane, the generous eye-box and the big field-of-view of 14.5 m/100 m rsp. 43.5 ft/100 yd* provides excellent situational awareness especially when focusing on fast moving game or when stalking. An outstanding light transmission of 92 % guarantees a crystal clear image for great detail recognition which is crucial for identifying game. When darkness falls, the short and rugged design is a perfect fit for rear or front mounted night vision attachments.

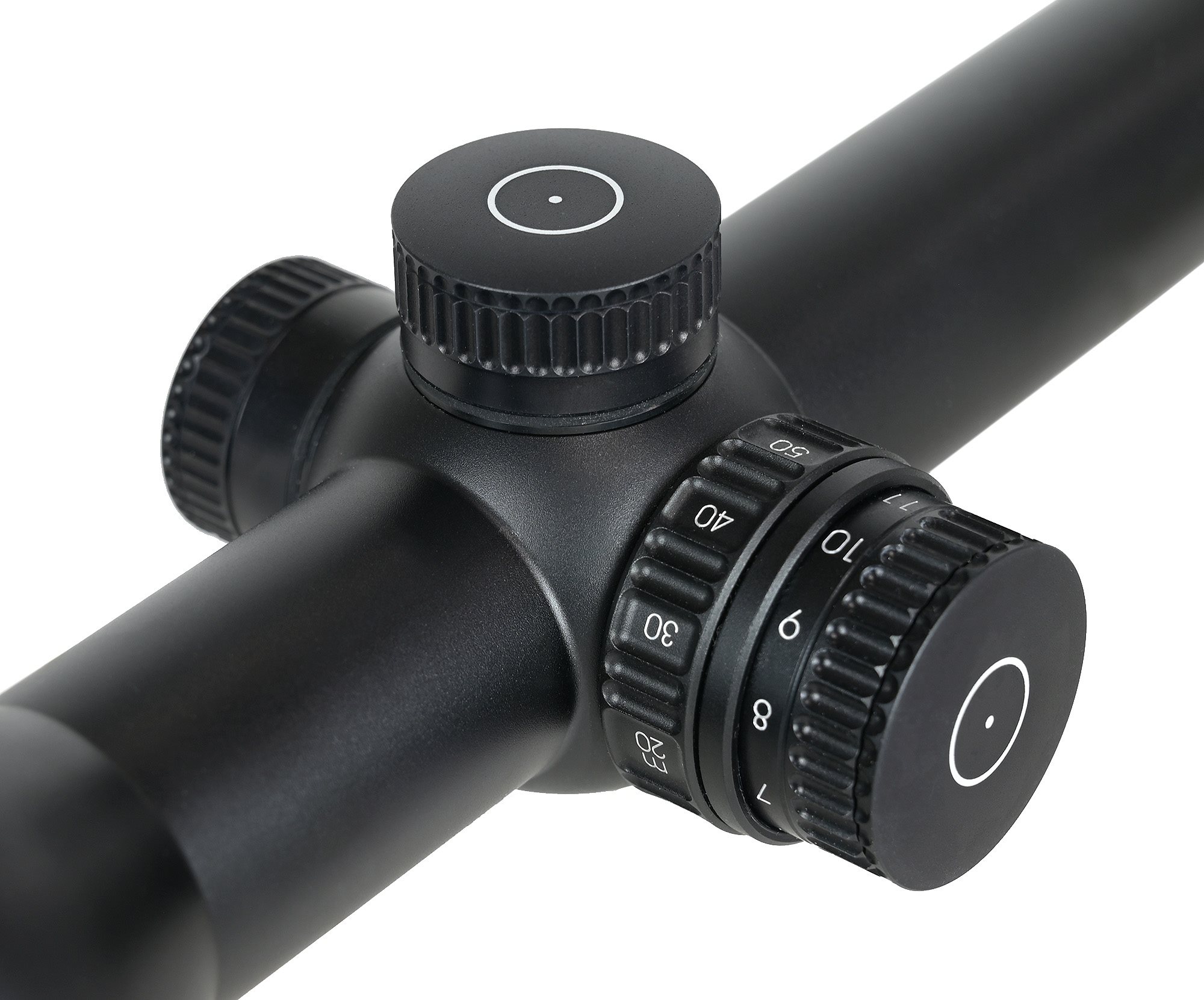

LPI (Illumination Parallax Integrated)

The new 3-18x42 Meta hunting riflescope features our innovative “LPI” which stands for the German words “Leucht-Parallaxe-Integriert” and means „Illumination Parallax Integrated“. This new and very easily operable illumination control is integrated into the parallax adjustment and allows a better mounting solution. It also enables a better left handed use. The very compact illumination/parallax adjustment retains the familiar features: on the outer side the smaller and easy to operate illumination knob has 11 functional steps with “off” positions between each step. The bigger knob which is next to the tube operates the very precise side focus/parallax adjustment. It starts at 20 m/22 yd for close distances and goes up to infinity – which is most beneficial when using night vision devices. Both knobs are clearly distinguished by size and feel while the engravings of each turret can be read or adjusted while in shooting position – also with gloves.

Specifications

• Weight (g/oz): 680–700/23.99–24.69
• Length (mm/in): 328/12.91
• Main tube diameter (mm/in): 30/1.18
• Mount system: Ring or LMZ rail mount
• Magnification: 3–18
• Objective diameter (mm)/(in): 42/1.65
• Field-of-view (m/100 m)/(ft/100 yd): 14.5–2.4/43.5–7.2
• Field-of-view [USA] (m/100 m)/(ft/100 yd): 12.4–2.1/37.2–6.4
• Field-of-view (°): 8.3–1.4
• Field-of-view [USA] (°): 7.1–1.2
• Exit pupil diameter (mm/in): 8.3–2.3/0.33–0.09
• Eye relief distance (mm)/(in): 90/3.54
• Twilight factor: 10.8–27.5
• Transmission (%): 92
• Focal Plane: 2
• Diopter adjustment (dpt): –3 to +2
• Turrets (Elevation / Windage) Posicon CT / Posicon CT
• Click value 1 cm/100 m
• Adjustment range elevation 305 cm/100 m
• Adjustment range windage 305 cm/100 m
• Parallax adjustment (m/yd): 20 to 8/21.87 to 8
• Illumination: 1 settings
• Waterproof (m)/(ft): 3/9.84
• Temperature – Storage (°C)/(°F): –55 to +71/–67 to +160
• Temperature – Function (°C)/(°F): –40 to +61/–40 to +142
• Turret rotation: clockwise
• Turret rotation [USA]: counter clockwise
• Reticle: LP7
