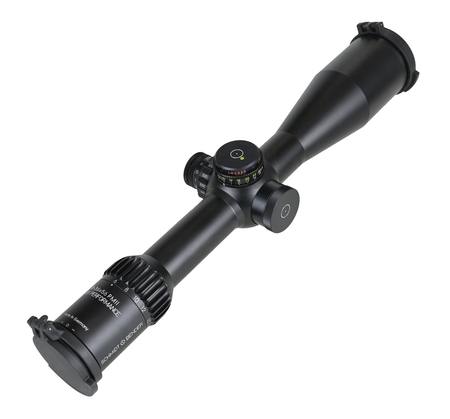

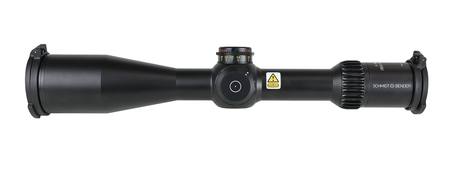

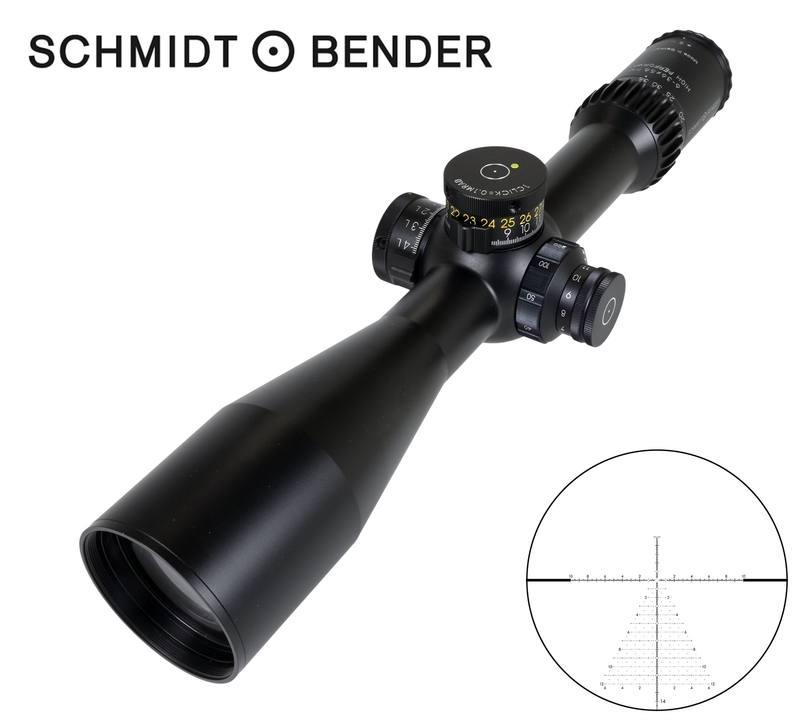

Schmidt & Bender PM II High Performance 6-36x56: 1cm DT35 MTC/ST ZC Capped Posicon Turret, LPI TR²ID (FFP) Illuminated Reticle

Schmidt & Bender PM II High Performance 6-36x56: 1cm DT35 MTC/ST ZC Capped Posicon Turret, LPI TR²ID (FFP) Illuminated Reticle

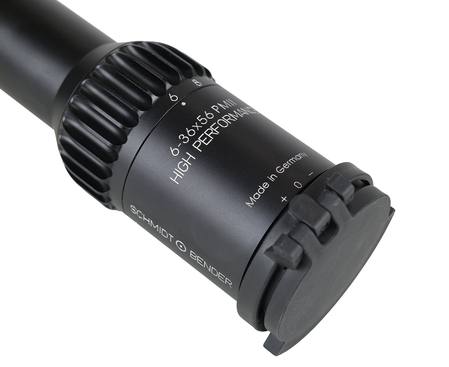

The new S&B 6-36x56 PM II High Performance offers the best solution for medium to extreme long-range shooting. Like all of our PM II riflescopes, we designed and manufactured this 6x zoom riflescope according to MIL-STD-810G for handling the harshest environments. Outstanding image quality with a wide field-of-view (FOV) provides superior detail recognition. Reduced weight and size makes it very compact while the new LPI illumination also enables left handed use. The efficient 6-36x magnification range is combined with a 39.5 MRAD elevation turret which supports more precise shot placements.

LPI (Illumination Parallax Integrated)

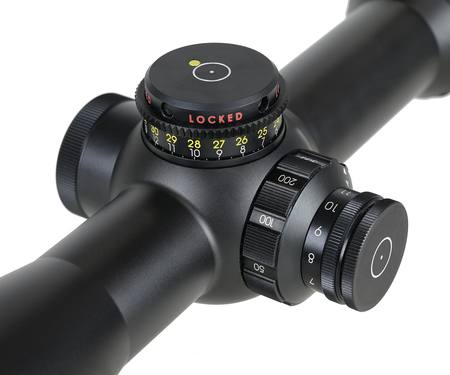

The 6-36x56 PM II High Performance now features our new “LPI” which stands for the German words “Leucht-Parallaxe-Integriert” and means „Illumination Parallax Integrated“. This new and very easily operable illumination control is integrated into the parallax adjustment and allows a better mounting solution. It also enables a better left handed use. Although being very compact the illumination and the parallax adjustment show the familiar features: on the outer side the smaller and easy to operate illumination knob has 11 functional steps with “off” positions between each step. The bigger knob which is next to the tube operates the very precise side focus/parallax adjustment. It begins at 25 m/27 yd for close distances and goes up to infinity. Both knobs are clearly distinguished by size and rippling while the engravings of each turret can be read or adjusted while in shooting position – also with gloves.

NEW TR²ID Reticle

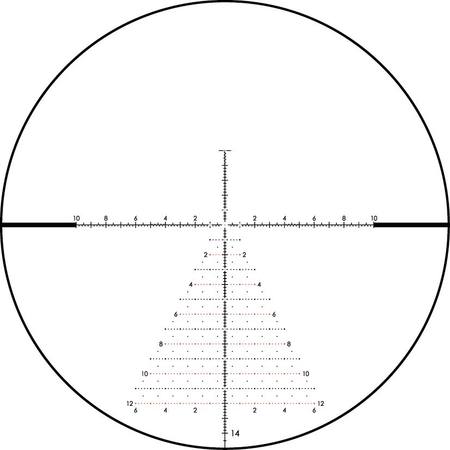

Schmidt & Bender proudly present their TR²ID innovative mil-based tree-style reticle with 0.2 mil subtension which was developed in co-operation with experienced competition shooters. Experience an unrivalled view of your target – the focus is on a clear view so you can spot the impact or – just as important – a miss.

The reticle enables precise holding and fast target acquisition so you can fully concentrate on the essentials.

Don‘t miss the chance to take your success to the next level. Get the Schmidt and Bender TR²ID reticle.

Key Features:

• Precise aiming capabilities: Free-floating center-dot for precise shot placement and quick visual acquisition.
• Uniform tree-shape grid: non-cluttered, free-floating dots with 0.2 milliradians subtensions for accurate bullet drop and wind corrections.
• Smart Numbering System: reticle is numbered and clearly marked for easy reference and precise overview in even numbers.

Specifications

• Weight (g): 940 - 995
• Length (mm): 390
• Tube diameter (mm): 34
• Magnification: 6-36x
• Objective lens diameter (mm): 56
• Field of view (m): 7.3 - 1.25
• Field of view [USA] (m): 6.2 - 1.05
• Exit pupil (mm): 8.3 - 1.6
• Eye relief distance (mm): 90
• Twilight factor: 17.3 - 44.9
• Transmission: >90
• Focal plane: FFP
• Diopter: -3 to +2
• Adjustment: DT35 MTC LT / ST ZC CT
• Adjustment value/Click: 0.1 MRAD
• Elevation (Turret): 35 MRAD
• Windage (Turret): ±6 MRAD
• Parallax adjustment: 20 m to 8
• Illumination: yes
• Waterproof (m): 3
• Storage Temp: –55 bis +71 °C
• Function Temp: –46 bis +61 °C
• Turret Types: Counter clockwise, clockwise
• Reticle: TR²ID
