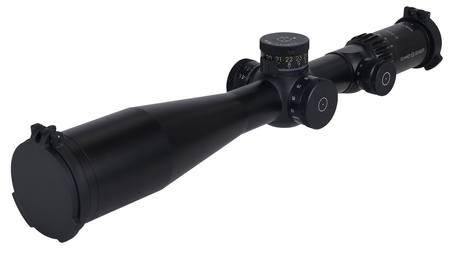

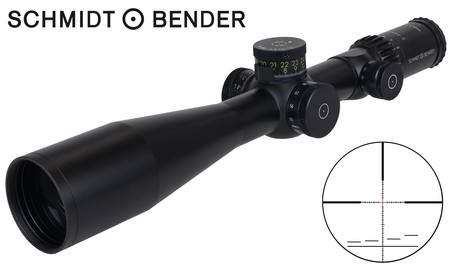

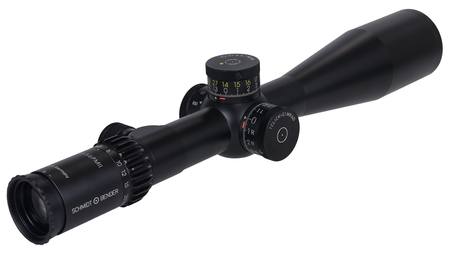

Schmidt & Bender PMII Scope 5-25x56 P4FL DT II+ MTC LT 0.1mrad Illumination

Schmidt & Bender Scope PMII 5-25x56 P4FL DT II+ MTC LT 0.1mrad Illumination

The 5-25x56 PM II Rifle Scope has set the benchmark for the industry in terms of optical quality and mechanical reliability. A new ocular design makes Schmidt & Bender's best seller even more operable: a redesigned magnification ring is made out of solid aluminium and can accommodate their Throw Lever. In addition, the diopter adjustment can mount Schmidt & Bender's military-grade Polarization Filter via a thread as well as enebraex caps without needing any bulky adapters.

Another new option of this rifle scope is the low-profile elevation turret with a large adjustment range which can easily be combined with a red dot sight for close distances. Due to its great magnification range and well-engineered performance, the 5-25x56 PM II is very popular among military/police units as well as competition shooters who are demanding the best of the best.

Features for the 5-25x56 PM II Scope

Reticle Data Sheet P4FL

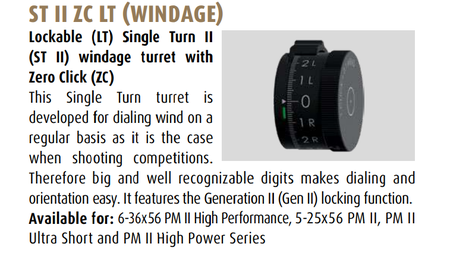

ST II ZC LT (Windage)

Lockable (LT) Single Turn II (ST  II) windage turret with Zero Click (ZC) This Single Turn turret is developed for dialling wind on a regular basis as it is the case when shooting competitions. Therefore big and well-recognizable digits make dialling and orientation easy. It features the Generation II (Gen II) locking function.?

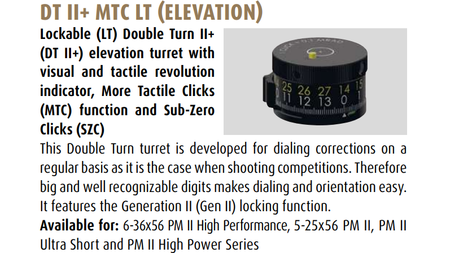

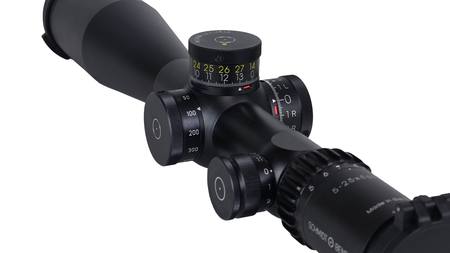

DT II+ MTC LT (Elevation)

Lockable (LT) Double Turn II+ (DT II+) elevation turret with visual and tactile revolution indicator, More Tactile Clicks (MTC) function and Sub-Zero Clicks (SZC) This Double Turn turret is developed for dialling corrections on a regular basis as it is the case when shooting competitions. Therefore big and well-recognizable digits make dialling and orientation easy. It features the Generation II (Gen II) locking function. Available for: 6-36x56 PM II High Performance, 5-25x56 PM II, PM II Ultra Short and PM II High Power Series

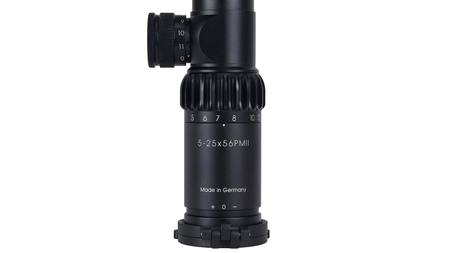

Magnification Ring

The new magnification ring is now fully rugged and is made out of solid aluminium. It has been further optimized and now features a magnification ring with deep grooves for a better grip which also allows it to accommodate a Throw Lever.

Diopter Adjustment

In addition, the diopter has been redesigned in order to attach Schmidt & Bender's military-grade Polarization Filter Ocular via a thread. The ribbed structure of the diopter adjustment makes it suitable for the tactical Tenebraex Ocular Lens Cover.

Specifications for the 5-25x56 PM II Scope

• Magnification: 5-25

• Objective Lens Diameter: 56

• Focal Plane: First Focal Plane

• Reticle: P4FL

• Finish: Black

• Click Value: 0.1 mrad (1cm @ 100m)

• Field of View: 5.3-15 m

• Tube Size: 34 mm

• Eye Relief: 90 mm

• Exit Pupil: 11.0 - 2.3 mm

• Length: 420 mm

• Weight: 1065-1125 g

• Turret type; Clockwise

• Adjustment: DT II+ MTC LT / ST II ZC LT

• Adjustment Value/Clic: 0.1 mrad

• Elevation (Turret): 26.5 mrad

• Windage (Turret): ±6 mrad

• Diopter: -3 to +2

• Parallax adjustment: Yes, 10 to 8

• Illumination: Yes, 11 settings

• MFG Code: 689-911-972-L8-I6
