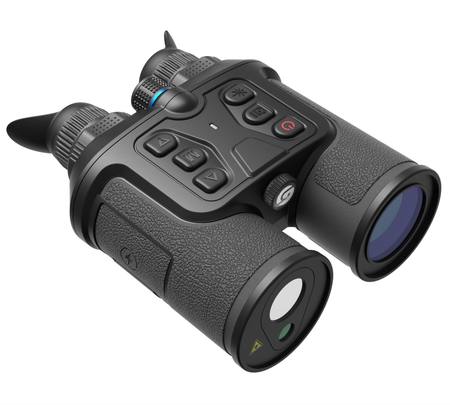

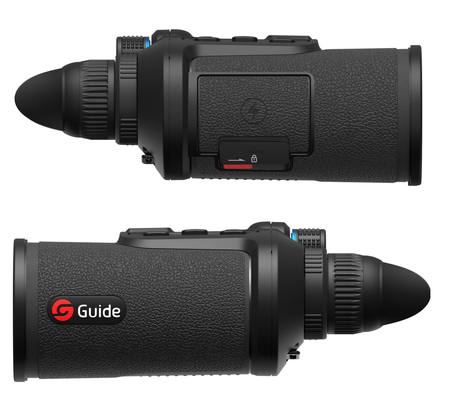

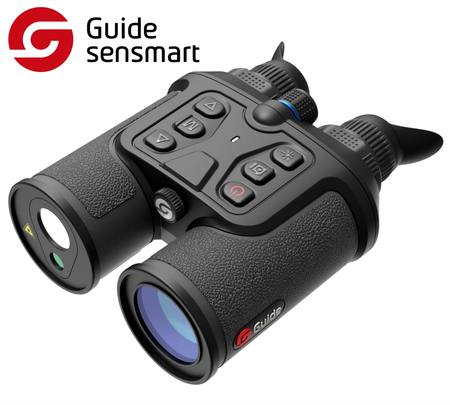

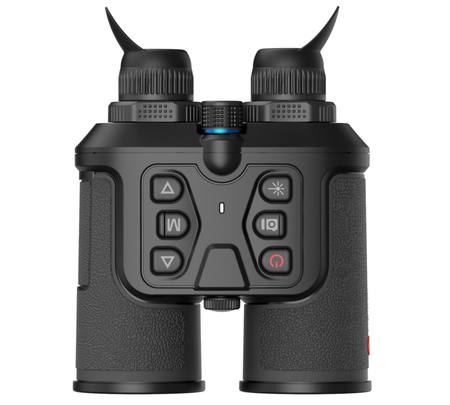

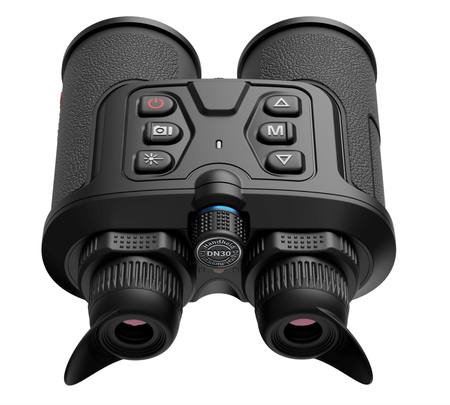

Guide DN30 Laser Rangefinder Binoculars

Experience 4K ultra-high-definition visuals with the DN Series laser rangefinder binoculars. Its 3840x2160@2µm moonlight low-light CMOS sensor and 1920x1080 AMOLED display create stunning images day and night from the Guide Night Vision Binoculars.

In the case of sufficient light, the 4K low-light detector has a strong colour rendition ability, presenting more delicate and colourful images; and in the morning, dusk, and night when there is insufficient light, turn on the infrared fill light, and you can “see through” the dark night from a long distance to observe, identify, and monitor hidden targets ahead.

Binocular Features

• 3840×2160@2µm4K UHD sensor
• 1920×1080 AMOLED display
• 600/1000m Laser ranging
• 6 hours battery life
• Core Sensor with clear imaging
• High-definition Display for the Ultimate Vision
• Outdoor hunting with 24/7 animal observation
• Three Scene Modes to Choose
• Photo and Video by One-touch
• OTA Upgrade for Easy Updating

Binocular Specifications

Sensor

• Type   CMOS

• Resolution   3840×2160@2µm

• Minimum illuminance   0.001 lux

• Frame rate   50Hz

Lens

• Focal length   35mm F1

• Field of view   12.57°×7.12°

• Optical zoom   1.96x

• Digital zoom   1x to 8x

• Focus   Manual

Display

• Display Type   0.39’’ AMOLED×2

• Eyepiece   Exit pupil distance=16 mm; Diopter: -4 to+2; Interpupillary distance adjustment: 60mm to 70mm; Zoom: 13.8x

• Video output   Digital video

Range Performance

• Detection range   600m

Hardware

• Laser rangefinder   Max. measuring range: 600m or 1000m

• IR illuminator   940 nm

• Other  GPS, Compass, Gyroscope, Bluetooth

Functions

• Scene modes   Day, Night and Low-light Modes

• Recording function   Photo/Video

• WIFI   2.4G

• Supported Application   TargetIR

• Firmware OTA   Upgrade device firmware via app connection

Power

• Battery type   2 replaceable 18650 batteries

• Operating time   6 hours

Interface

• USB   USB Type-C

• Video interface   micro HDMI

• Mechanical interface   UNC ¼"-20 (Tripod mounting, L-bracket is required), Mechanical expansion interface

System

• Language settings   English, Russian, German, French

• Memory capacity   32 GB

Environmental

• Operating temperature   -30°C to 50°C

• Storage temperature   -40°C to 60°C

• Humidity   10 % to 95 % non-condensing

• Encapsulation   IP67

• Certification   CE, FCC, EAC, RoHS

Warranty period on new thermal optics:

• Pulsar: 3 Year manufacturers warranty

• Guide: 1 Year + Register online and get an extra year: https://www.guideir.com/service/free-extended-warranty

• InfiRay: 2 Year warranty: https://www.infiray.com/uploads/file/after-sales-service-policy.pdf

Please note: The manufacturer warranty period above covers the unit itself and does not cover commercial use. Thermal accessories will have a lesser cover period than what is specified for the units above. The warranty does not cover misuse or accidental damage caused by the operator.
