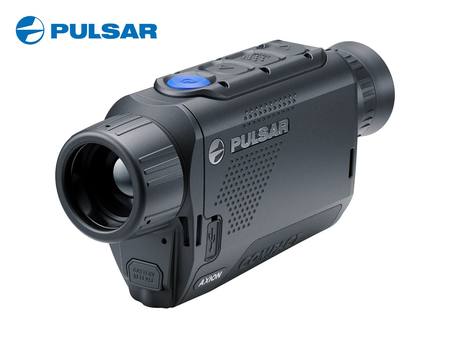

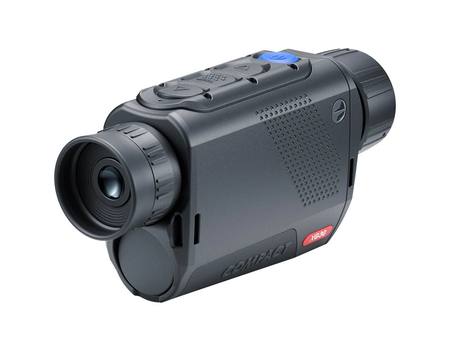

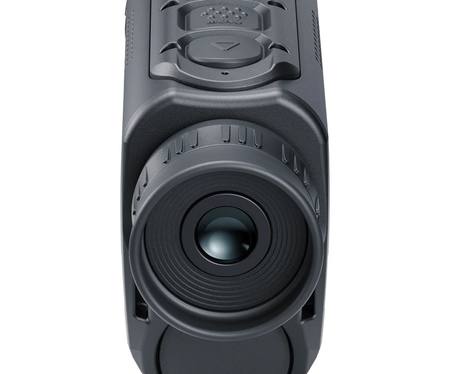

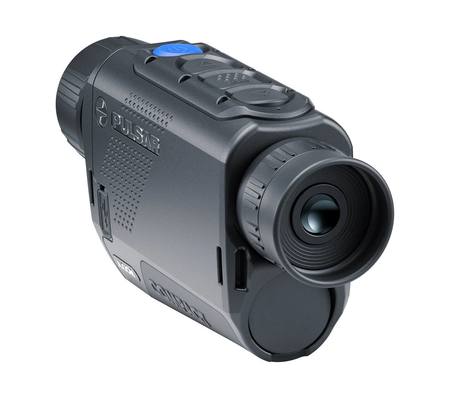

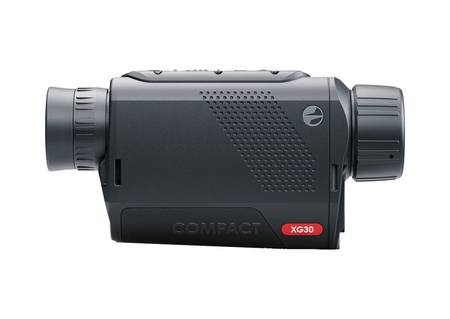

Pulsar Axion XG30 Compact Thermal Imaging Monocular

Get more for less.

Enter the world of thermal vision with the Pulsar Axion thermal imaging monoculars. Pulsar's most compact and affordable devices are perfect for those hunters who wish to explore the possibilities of thermal vision without breaking the bank.

The Pulsar Axion XG30 Compact is a great tool for close-range observation in areas with thick vegetation. Fitting in one hand and light to carry, they still offer high thermal sensitivity and other premium features, including Wi-Fi connectivity and our latest image processing algorithms.

Features

European made thermal imaging sensors

Axion Compact Series is ideal for scanning and game finding. Quality European made sensors ensure excellent image in all conditions.

• 640×480/12 micron sensor provides enough detail for hot object identification.
• 384×288/17 micron sensor ensures thermal sensitivity.

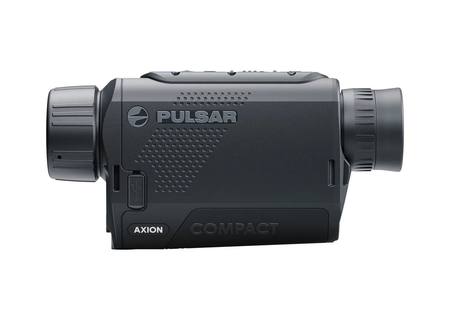

Pocket-sized dimensions and light weight

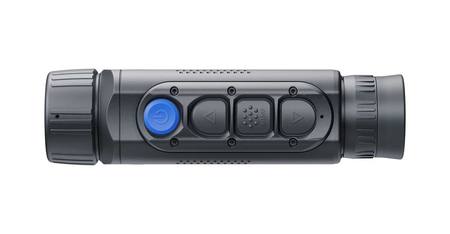

Axion monoculars have a space-saving and pocket-sized design and weights less than 300 grams, which makes them the best thermal imaging monoculars for those who look for a truly compact option, both in hunting and tourism. The device is easy to grip and operate by right-handed and left-handed people due to the symmetrical arrangement of buttons on the upper panel.

Wide field of view for easy scanning

Axion Compact monoculars have wide field of view which simplifies scanning and searching for hot objects. Wide field of view allows the observer to quickly spot all hot objects and focus on the most interesting ones, while simultaneously keeping all scene in view.

Photo and video recording

The Built-in video recorder is a great asset when it comes to filming or taking photos of once-in-a-lifetime experiences. One press of the REC button captures footage that can be shared easily with colleagues, friends and family. Internal memory of the unit ensures many hours of recorded video and tons of photos.

Rugged magnesium alloy housing

Axion is designed for constant, often hard use. A magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.

Sensitivity amplification levels

3 amplification levels combined with new filtration algorithms and fine brightness and contrast adjustments, increase the hunter’s chances for early detection of the animals under heavy weather and high humidity conditions. These settings provide optimized rendering of the target and background objects in the observation scene.

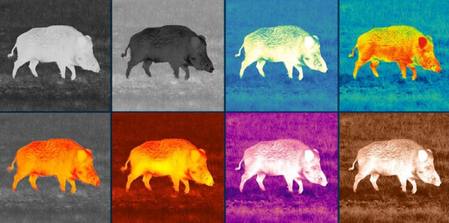

A selection of 8 color palettes

A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

Stream Vision 2 app support for iOS and Android

The built-in Wi-Fi module connects the device with either Android or iOS smartphones using the Stream Vision 2 mobile application. This combination opens up a wide range of options: wireless device software updates, real-time image transmission to the mobile device screen, remote control digital functions and much more. Users registered in the application are provided with cloud storage space for photos and videos taken with the device.

Other Features

• Frost-resistant AMOLED Display
• Long-life removable battery
• Charging with USB Type-C
• Picture-in-Picture Function
• IPX7 Waterproof rated
• User mode
• Digital zoom
• Tripod mount 1.4”

Specifications

Main

• Sensor: 640x480 @ 12 µm
• Objective lens: F30/1.2
• Magnification: 2 – 16 (x8 zoom)
• FOV (HxV), degrees: 14.6 x 9.2
• FOV (HxV), m@100m: 25.6 x 16.0
• Detection range: 1300

Sensor

• Type: uncooled
• Resolution, pixels: 640x480
• Pixel pitch, µm: 12
• Sensor NETD, mK: < 40
• Frame rate, Hz: 50

Optics

• Objective lens: F30/1.2
• Magnification, x: 2 – 16 (x8 zoom)
• FOV (HxV), m@100m: 25.6 x 16.0
• FOV (HxV), degrees: 14.6 x 9.2

Display

• Type: AMOLED
• Resolution, pixels: 640x480

Range performance

• Detection range, m: 1300

Video recorder

• Video / photo resolution, pixel: 960?600
• Video / photo format: .mp4 / .jpg
• Build-in memory, GB: 64

WI-FI

• Wireless protocol: Wi-Fi
• Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency, Ghz: 2.4 / 5

Environmental characteristics

• Degree of protection: IP code (IEC60529): IPX7 (waterproof)
• Operating temperature range, °?: -20 - +40

Connections and compatibilities

• Mount type: 1/4" socket
• Supported application: Stream Vision 2

Power supply

• Output voltage, V: 3.0 – 4.2
• Battery type: Li-Ion Battery Pack APS 3
• Capacity, mAh: 3200
• Operating time on battery pack, h at t=22°?: 7
• External power supply, V: 5 (USB Type C)

Weight & size

• Body material: Magnesium alloy
• Dimensions, mm: 144x41x69
• Weight, kg: 0,24 (without battery)
