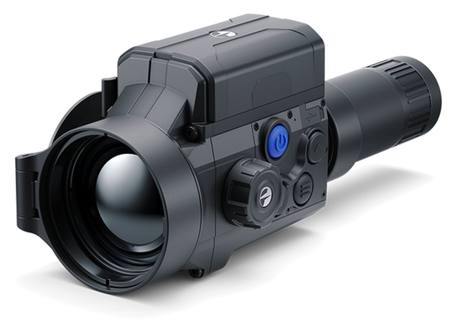

Pulsar Krypton 2 XG50 Thermal Imager | Handheld & Scope Clip-On

The Krypton 2 thermal imager is a combination of a compact thermal imaging module and a Pulsar 3x20B quick-release monocular, that can be used as an eyepiece. With one sweep the hunter gets a three times magnification spotting scope for natural daytime observation and a thermal imaging unit compatible with monocular type daytime optical devices.

The Krypton 2 thermal imaging module docks with daytime optics using a special PSP-B adaptor, converting the day optic into a thermal imaging device. A quick-release adaptor means that the Krypton 2 can be removed from, and re-installed to, a daytime spotting scope or binocular in seconds, while the precise positioning mechanism allows for the central alignment of the thermal image within the daytime optics field of view.

Features:

Compact and well-balanced design

When hunting, every extra gram of equipment counts. The Pulsar Krypton 2 thermal imaging monocular are easy and comfortable to use. With their short length, light-weight design and uniform weight distribution, the Krypton 2 has minimal impact on the balance when mounted on the lens of an optical riflescope or spotting scope, while the Krypton 2 controls are easy to reach.

Tugged magnesium alloy housing

A rugged, lightweight magnesium alloy housing has high structural strength, protecting the Krypton 2 from shock and vibration loads. It is also resistant to external mechanical, temperature, and climatic effects. The magnesium alloy housing effectively removes and dissipates heat from the thermal imager’s electronic components, increasing the device’s operational stability.

Supreme energy performance

The quick-change rechargeable Li-Ion battery pack IPS7 provides enough power for up to 11 hours of nonstop operation. One battery pack can run the whole night without the need to be replaced. Quick-release and wireless design and long operating time are the major highlights of this power system.

Quick-release PSP-B bayonet adaptors

The thermal imaging attachment is mounted on the adapter using a four-point bayonet. The bayonet coupling is highly reliable and quick and easy to attach. The attachment is removed from one adapter and installed on another with no need for special tools, allowing you to quickly and easily turn various daytime optics in the hunter’s arsenal into thermal imaging optics. The precise screen positioning mechanism enables the perfect alignment of the thermal or night vision image in the field of view of daylight optics for maximum viewing comfort.

High definition thermal imaging

European-made 12 µm / 640×480 pixel thermal imaging sensor ensures sharp, richly contrasted thermal image for enhanced identification of animals, their extremities and even the smallest details, i.e. branches, leaves, grass and terrain. Use the brightness and contrast adjustments to maximize the detail and informative value of the image in specific observation conditions. The User Mode function saves selected brightness and contrast settings in the device’s memory, providing optimal image quality for the next use of the thermal imager immediately, with no additional adjustments.

Other Features:

• Full-HD multicolour AMOLED display
• Built-in photo and video recorder
• A selection of 8 colour palettes
• Ergonomic Bluetooth remote control
• Fast aperture germanium lenses
• Operation in extreme temperatures -25 to +50°C
• IPX7 submersion waterproof rated
• Dual Wi-Fi waveband support 2.4 / 5 GHz
• Stream Vision 2. Wi-Fi integration with iOS and Android devices
• Up to .375 H&H Ready
• Point-of-impact stability
• Weaver rail mountable

Main specifications

• Sensor (NETD < 40 mK) @ 12 µm 640x480 pix.
• Objective lens: F50 / 1.0
• Magnification: 3x
• FOV (HxV) degrees / m@100m: 8.8x6.6 / 15.4x11.5
• Detection range: 2300

Sensor

• NETD, mk: < 40
• Type: uncooled
• Resolution, pixels: 640x480
• Pixel pitch: 12 µm
• NETD: < 40mk
• Frame rate: 50 Hz

Optics

• Objective lens: F50 / 1.0
• Magnification: 3x
• Display
• Type: AMOLED HD
• Resolution, pixels: 1920x1080

Range performance

• Detection range: 2300 m

Video recorder

• Video / photo resolution, pixel: 1024x768
• Video / photo format: .mp4 / .jpg
• Build-in memory: 16 GB

Bluetooth

• Wireless protocol: BLE 4.2
• Wireless standard: IEEE 802.15.1
• Frequency: 2.4 GHz

WI-FI

• Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequency: 2.4 / 5 Ghz

Environmental characteristics

• Degree of protection IP code (IEC60529): IPX7 (waterproof)
• Operating temperature range: -25 – +50°?

Connections and compatibilities

• Remote control: Pulsar BT (included)
• Supported application: Stream Vision 2

Power supply

• Output voltage, 3.0 – 4.2 V
• Battery type: LPS 7i Li-Ion Battery Pack
• Capacity: 6400 mAh
• Operating time on battery pack (at t=22°?): up to 11h
• External power supply: 5V; 9V (USB Type-C Power Delivery)

Weight & size

• Body material: Magnesium alloy
• Dimensions: 217 x 78 x 84mm (with Pulsar 3x20B monocular)
• Weight:
• 0.45KG (w/o battery)
• 0.58 (with IPS7 battery)

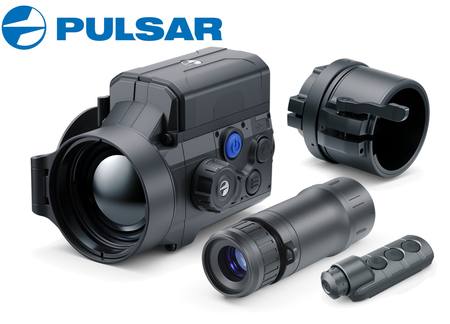

Package Contents

• Thermal Imaging Attachment
• Carrying Case
• Wireless Remote Control
• IPS7 Battery Pack
• Battery Pack Charger
• Power Adapter
• USB Type-C cable with USB Type-A adapter
• USB Type-C to MicroUSB Type-B adapter
• Quick Start Guide
• Lens-Cleaning Cloth
• Warranty Card
